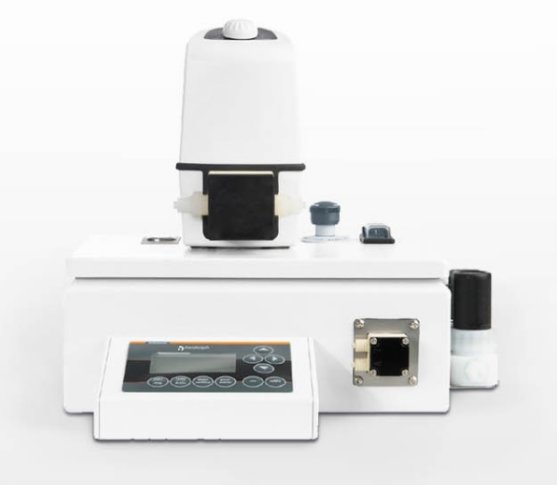

Hei-VOLUME Automatic Evaporation

Adds numerous smart features to the Hei-VAP Expert, as well as an overview of all parameters and the current process

5″ touch display for controlling the entire system including the vacuum and the cooling temperature
For precise monitoring, the pictogram on the display also symbolizes active functions
Separate knobs for quick access: the right one for direct vacuum control, the left one for the rotation
Setting of values either via the touch display or the separate quick access knobs
Direct access to two favorites on the start screen
Expandable solvent library. You can also transfer your own favorites to other devices using a USB stick
Define and save own evaporation processes (ramps)
Automatically evaporate with the Dynamic AUTOaccurate Program (DAA). Convenient and customizable: from foam avoidance to highly efficient evaporation
With USB and Micro SD interface for easy installation of software updates and transfer of individual favorites from one device to another

Automatic evaporation with Dynamic AUTOaccurate (DAA)
The DAA allows you to start a fully automated distillation process already during the heat-up phase of the heating bath.
The system vacuum is dynamically adjusted to the changing heating bath temperatures until the heating bath has reached its defined temperature.

The boiling points of one or more fractions are identified through the steam temperature gradation of the mixture during continuous automatic pressure control
You can freely set whether one or more fractions are to be distilled. The vacuum control is fully automated for each fraction
You can control the evaporation speed by adjusting the ratio of steam temperature to cooling temperature
Samples are distilled precisely
Automation with sensors ensures noticeably higher precision
To protect your sample, motor lift models automatically remove the evaporating flask from the heating bath at the end of the process
